Set Up Keycloak SCIM Provisioning for Identity Sync

Sync users and groups from Keycloak to Kestra using SCIM.

Prerequisites

• Keycloak Account: An account with administrative privileges is required to configure SCIM provisioning.
• Enable multi-tenancy in Kestra: Tenants must be enabled in Kestra to support SCIM provisioning. You can enable tenants by setting the kestra.ee.tenants.enabled configuration property to true:

kestra:
  ee:
    tenants:
      enabled: true

Kestra SCIM setup: create a new provisioning integration

1. Go to Instance Owner, select your tenant from the sidebar, open IAM, and click the SCIM Provisioning tab.
2. Click + Create.
3. Fill in the following fields:
   • Name: Enter a name for the provisioning integration.
   • Description: Provide a brief description of the integration.
   • Provisioning Type: Only SCIM 2.0 is supported — leave the default selection and click Save.

These steps generate a SCIM endpoint URL and a Secret Token. Save both — you will need them in the next steps.

The endpoint should look as follows:

https://<your_kestra_host>/api/v1/<your_tenant>/integrations/integration_id/scim/v2

The Secret Token is a long string (approx. 200 characters) used to authenticate requests from Keycloak to Kestra.

Enable or disable SCIM integration

You can disable or remove the SCIM integration at any time. When disabled, all incoming requests to that endpoint are rejected.

IAM role and service account

When creating a new Provisioning Integration, Kestra will automatically create two additional objects:

1. Role SCIMProvisioner with the following permissions:

   • GROUPS: CREATE, READ UPDATE, DELETE
   • USERS: CREATE, READ, UPDATE
   • BINDINGS: CREATE, READ, UPDATE, DELETE

2. Service Account with an API Token which was previously displayed as the Secret Token for the integration:

Keycloak SCIM setup

Keycloak does not provide any built-in support for SCIM v2.0. Some open-source solutions support groups synchronization but not users and membership synchronization.

However, there are paid solutions such as SCIM for Keycloak that allow you to extend Keycloak with SCIM. The setup shown below was validated with Kestra 0.18.0 and Keycloak 25.0.2 — best if you use the same or higher versions.

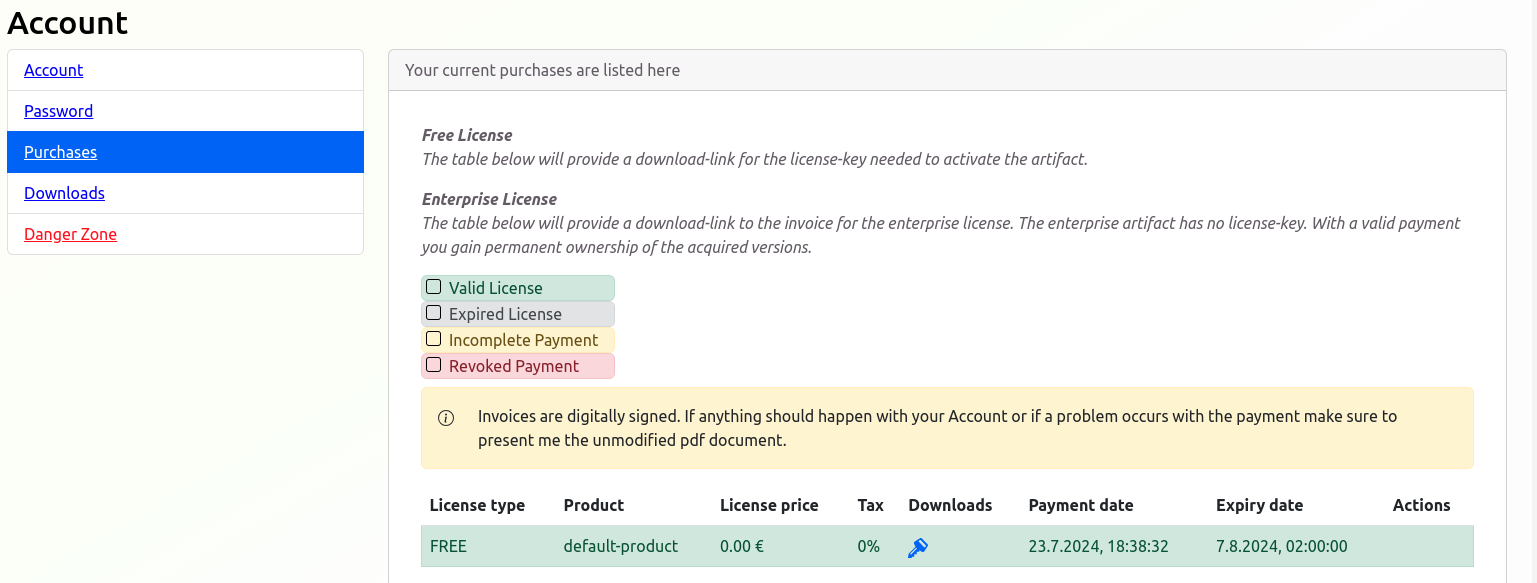

1. Create an account at https://scim-for-keycloak.de/ and purchase a free license (no VAT number or credit card required).

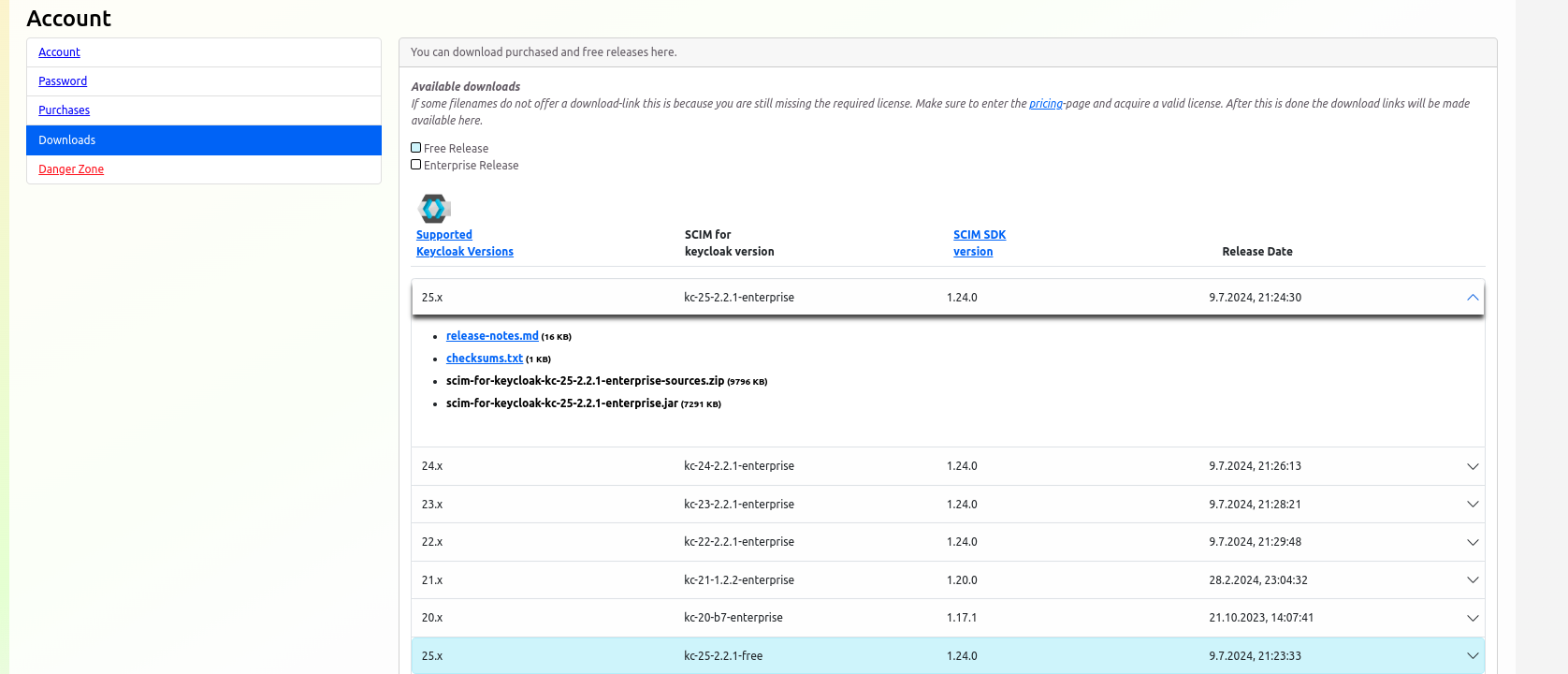

2. Download the plugin JAR file from the Downloads section (e.g. scim-for-keycloak-kc-25-2.2.1-free.jar).

Place the JAR in the ./providers directory of your Keycloak installation. See SCIM for Keycloak Installation for details.

3. Deploy Keycloak:
   • Create a simple docker-compose.yaml file:

   services:
     keycloak:
       container_name: keycloak
       image: quay.io/keycloak/keycloak:25.0.2
       ports:
         - 8085:8085
       environment:
         KEYCLOAK_ADMIN: admin
         KEYCLOAK_ADMIN_PASSWORD: admin
         KC_SPI_THEME_WELCOME_THEME: scim
         KC_SPI_REALM_RESTAPI_EXTENSION_SCIM_LICENSE_KEY: <LICENSES_KEY>
       command:
         ["start-dev", "--http-port=8085"]
       volumes:
         - ./providers:/opt/keycloak/providers
       network_mode: "host" # Optional: for accessing external Kestra

   • Run docker compose up to start Keycloak.
4. Configure the SCIM for Keycloak:

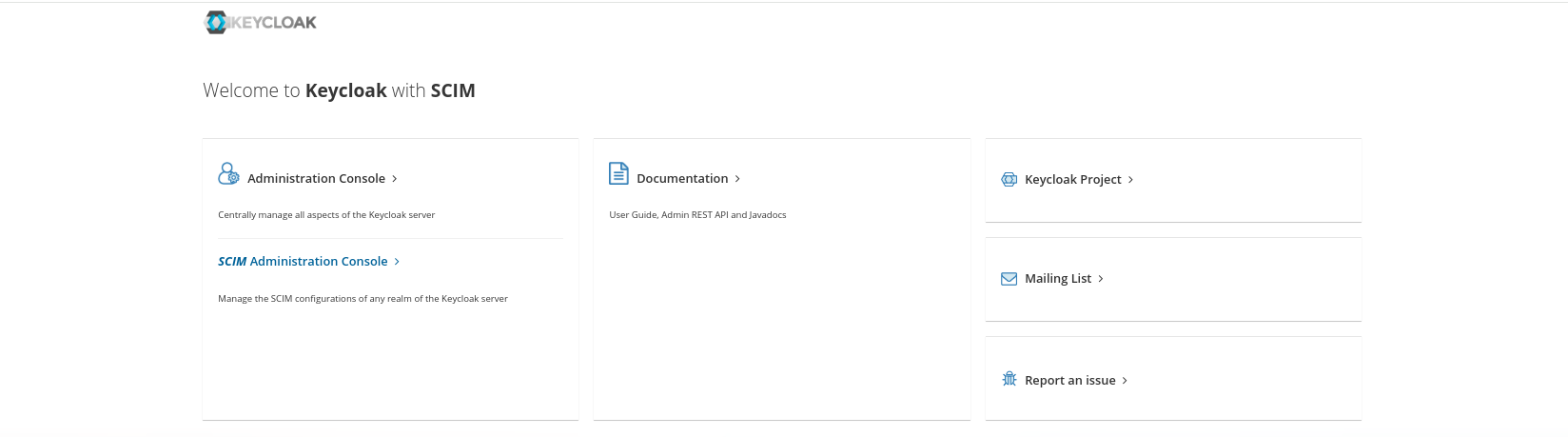

   • Connect to the SCIM Administration Console to synchronize users and groups from Keycloak to Kestra.

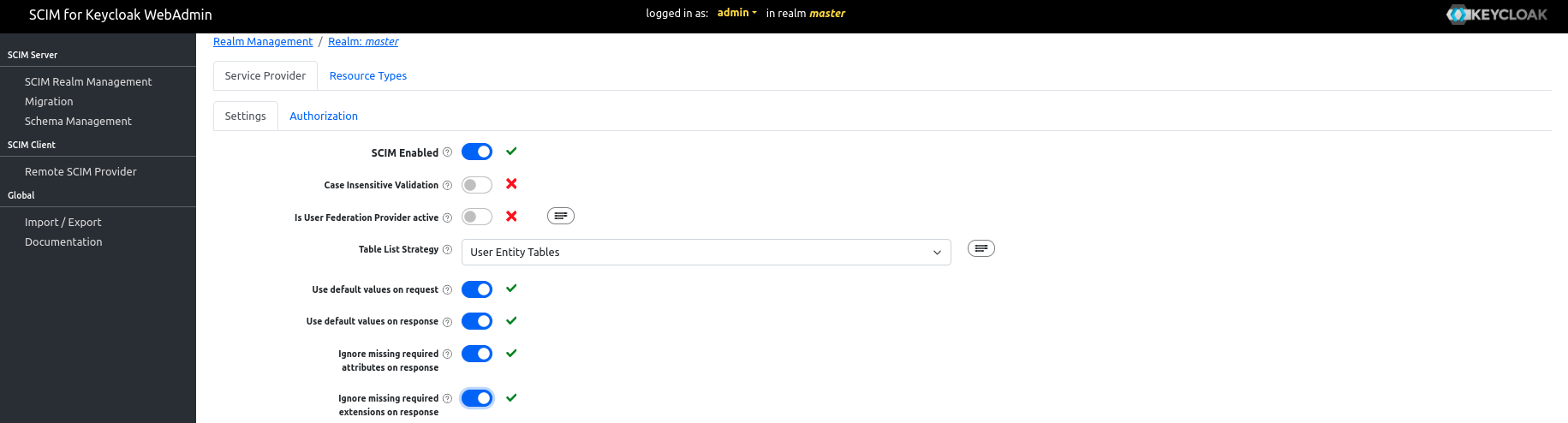

   • Enable SCIM for the realm.
   • Disable Bulk and Password synchronization — these operations are not supported by Kestra.
5. Create a SCIM Client:

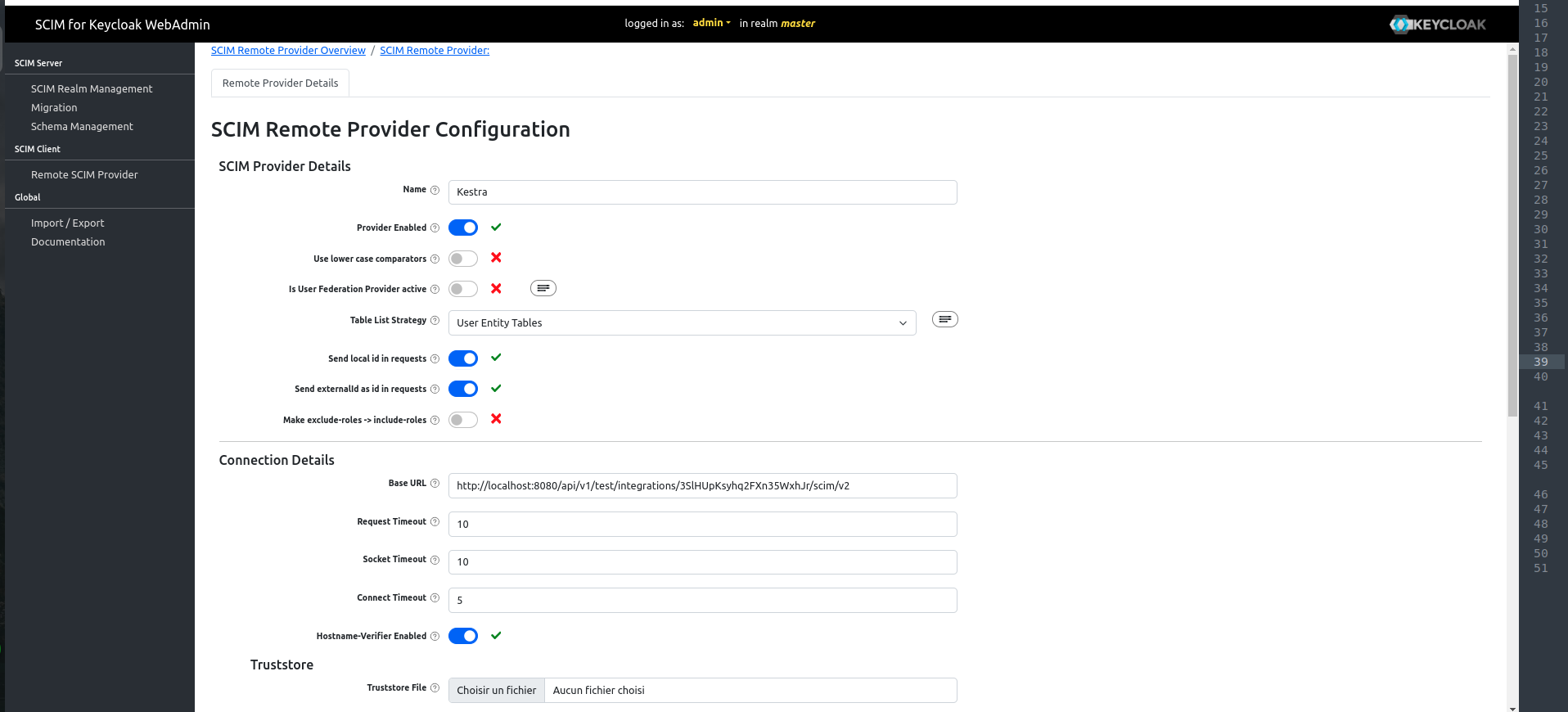

   • Navigate to the Remote SCIM Provider section
   • Fill the Base URL field with your Kestra SCIM Endpoint:

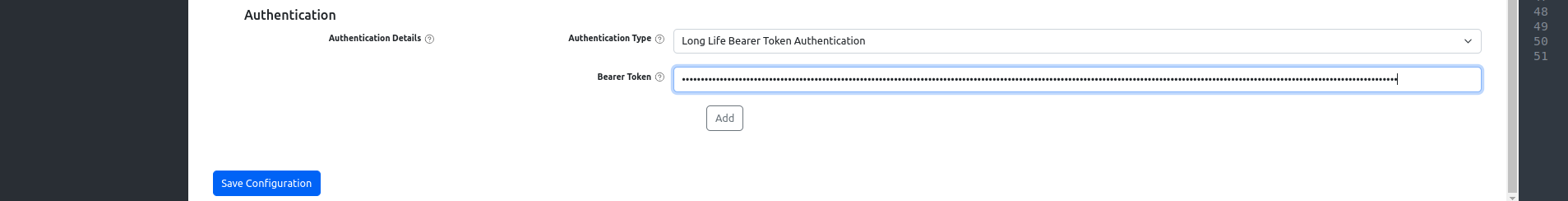

   • Fill the Authentication with your Kestra Secret Token:
6. Toggle Enabled in the Kestra Provisioning Integration to start syncing users and groups from Keycloak to Kestra.

Additional resources

• SCIM for Keycloak Documentation
