Master Branching, Looping & Parallel Execution with Flowable Tasks

Run tasks or subflows in parallel, create loops, and conditional branching.

The example flow from earlier in this tutorial extracts data from an API, processes it in a Python script, executes a SQL query, and generates a downloadable artifact on a predefined schedule. Many real-world use cases require branching, looping, or running several tasks simultaneously. Kestra handles these requirements with Flowable tasks.

Tasks from the Core Flow plugin control flow logic. Use them to run tasks in parallel or sequentially, branch conditionally, iterate over items, pause, or allow specific tasks to fail without stopping the execution.

For example, you can use the If task to specify your conditions and define what action to take based on whether those conditions are met.

The example below redesigns the flow to use a SELECT input for product category rather than a STRING URI, while still calling dummyjson. An API request is made based on the selected category — beauty or notebooks (one does not exist).

The check_products If task has a condition of "{{ fromJson(outputs.api.body).products | length > 0 }}" (i.e., checking whether the API body is not empty and contains at least one product). The log message then depends on whether the actual product category exists or not. The then property defines the action for a true condition, and the else property defines the action for a false result.

id: getting_started
namespace: company.team

inputs:
  - id: category
    type: SELECT
    displayName: Select a category
    values: ['beauty', 'notebooks']
    defaults: 'beauty'

tasks:
  - id: api
    type: io.kestra.plugin.core.http.Request
    uri: "https://dummyjson.com/products/category/{{ inputs.category }}"
    method: GET

  - id: check_products
    type: io.kestra.plugin.core.flow.If
    condition: "{{ fromJson(outputs.api.body).products | length > 0 }}"
    then:
      - id: log_status
        type: io.kestra.plugin.core.log.Log
        message: "Found {{ fromJson(outputs.api.body).products | length }} products for category {{ inputs.category }}"
      - id: python
        type: io.kestra.plugin.scripts.python.Script
        containerImage: python:slim
        dependencies:
          - polars
        outputFiles:
          - "products.csv"
        script: |
          import polars as pl
          data = {{ outputs.api.body | jq('.products') | first }}
          df = pl.from_dicts(data)
          df.glimpse()
          # Keep a simple view for this category
          df.select(["title", "brand", "price"]).write_csv("products.csv")
      - id: sqlQuery
        type: io.kestra.plugin.jdbc.duckdb.Query
        inputFiles:
          in.csv: "{{ outputs.python.outputFiles['products.csv'] }}"
        sql: |
          SELECT brand, round(avg(price), 2) AS avg_price, count(*) AS cnt
          FROM read_csv_auto('{{ workingDir }}/in.csv', header=True)
          GROUP BY brand
          ORDER BY avg_price DESC;
        store: true
    else:
      - id: when_false
        type: io.kestra.plugin.core.log.Log
        message: "No products found for category {{ inputs.category }}."

triggers:
  - id: every_monday_at_10_am
    type: io.kestra.plugin.core.trigger.Schedule
    cron: 0 10 * * 1

Execute the flow twice, once with beauty and once with notebooks to examine the results.

Add a loop to a flow using Flowable tasks

A common orchestration pattern is operating on a set of values. Kestra offers several approaches depending on your use case. The standalone examples below demonstrate each type.

Loop

The Loop flowable task iterates over a list of values and runs child tasks for each item. Each iteration runs as an isolated sub-execution. Access the current value with {{ item.value }} and the zero-based index with {{ item.index }}.

Values can be a static list, a JSON array string, a map, or an ION file URI. The example below makes an API call for each author in the list:

id: loop_example
namespace: tutorial

tasks:
  - id: loop
    type: io.kestra.plugin.core.flow.Loop
    values: ["pynchon", "dostoyevsky", "hedayat"]
    tasks:
      - id: api
        type: io.kestra.plugin.core.http.Request
        uri: "https://openlibrary.org/search.json?author={{ item.value }}&sort=new"

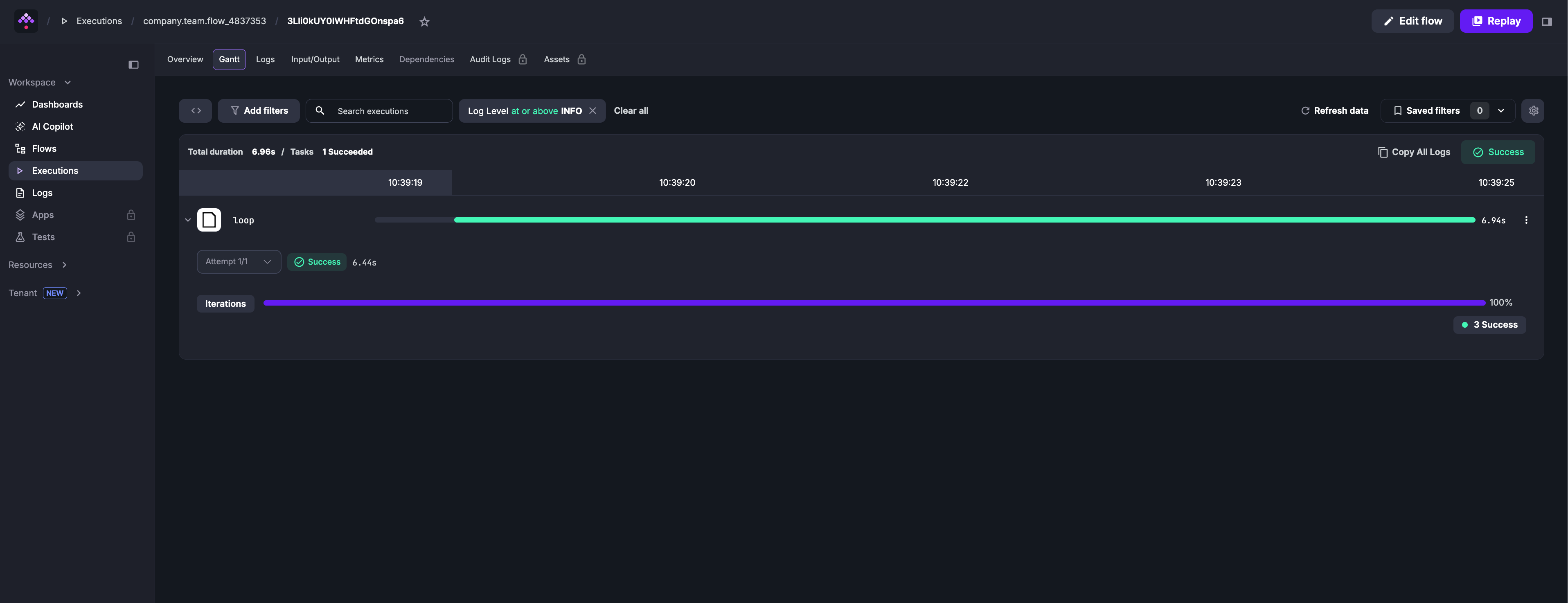

After execution, the Gantt view shows the main Loop task with the sub-executions for each loop through the values list for each author. Click into Iterations to view each loop individually.

See the Loop documentation for output collection, nested loops, error handling, and map-reduce patterns.

LoopUntil

You can also loop until an external system reports a healthy status. The LoopUntil task reruns its child tasks until a condition becomes true, which is helpful for polling APIs or long-running jobs.

Key options:

• condition — evaluated after each run and can reference the latest child outputs (for example {{ outputs.healthCheck.code }}).
• tasks — the steps executed on every loop iteration.
• checkFrequency — optional guardrails controlling the poll interval plus maximum iterations or duration.

id: loop_until_health_check
namespace: tutorial

tasks:
  - id: loop
    type: io.kestra.plugin.core.flow.LoopUntil
    condition: "{{ outputs.healthCheck.code == 200 }}"
    checkFrequency:
      interval: PT30S
      maxIterations: 50
    tasks:
      - id: healthCheck
        type: io.kestra.plugin.core.http.Request
        method: GET
        uri: https://kestra.io

This flow checks an HTTP endpoint every 30 seconds and stops either when it returns 200 or after 50 attempts, whichever comes first. You can reference the child task outputs (here outputs.healthCheck.code) inside the condition expression. See the LoopUntil task documentation for additional options.

Add parallelism using Flowable tasks

A common orchestration requirement is executing independent processes in parallel. For example, you can process data for each partition in parallel. This can significantly speed up the processing time.

The flow below uses the Loop flowable task with concurrencyLimit: 0 to process all partitions simultaneously.

1. The concurrencyLimit property set to 0 removes the cap on parallel iterations.
2. The values property defines the list of items to iterate over.
3. The tasks property defines the child tasks for each iteration. Access the iteration value with {{ item.value }}.

id: python_partitions
namespace: company.team

description: Process partitions in parallel

tasks:
  - id: getPartitions
    type: io.kestra.plugin.scripts.python.Script
    taskRunner:
      type: io.kestra.plugin.scripts.runner.docker.Docker
    containerImage: ghcr.io/kestra-io/pydata:latest
    script: |
      from kestra import Kestra
      partitions = [f"file_{nr}.parquet" for nr in range(1, 10)]
      Kestra.outputs({'partitions': partitions})

  - id: processPartitions
    type: io.kestra.plugin.core.flow.Loop
    concurrencyLimit: 0
    values: '{{ outputs.getPartitions.vars.partitions }}'
    tasks:
      - id: partition
        type: io.kestra.plugin.scripts.python.Script
        taskRunner:
          type: io.kestra.plugin.scripts.runner.docker.Docker
        dependencies:
          - kestra
        script: |
          import random
          import time
          from kestra import Kestra

          filename = '{{ item.value }}'
          print(f"Reading and processing partition {filename}")
          nr_rows = random.randint(1, 1000)
          processing_time = random.randint(1, 20)
          time.sleep(processing_time)
          Kestra.counter('nr_rows', nr_rows, {'partition': filename})
          Kestra.timer('processing_time', processing_time, {'partition': filename})

These examples, while simple, demonstrate the flexibility of flowable tasks in both simple and complex workflows.

To learn more about flowable tasks and see more examples, check out the full Flowable tasks documentation. Next, we’ll explore error handling in a flow.
