Integrate Keycloak as Your OIDC Identity Provider

Set up Keycloak as an OIDC provider for Kestra authentication. In conjunction with SSO, see the Keycloak SCIM provisioning guide.

Start a Keycloak service

If you don’t have a Keycloak server already running, you can use a managed service like Cloud IAM.

You can follow the steps described in the Keycloak tutorial documentation to deploy a managed Keycloak cluster for free.

Configure Keycloak client

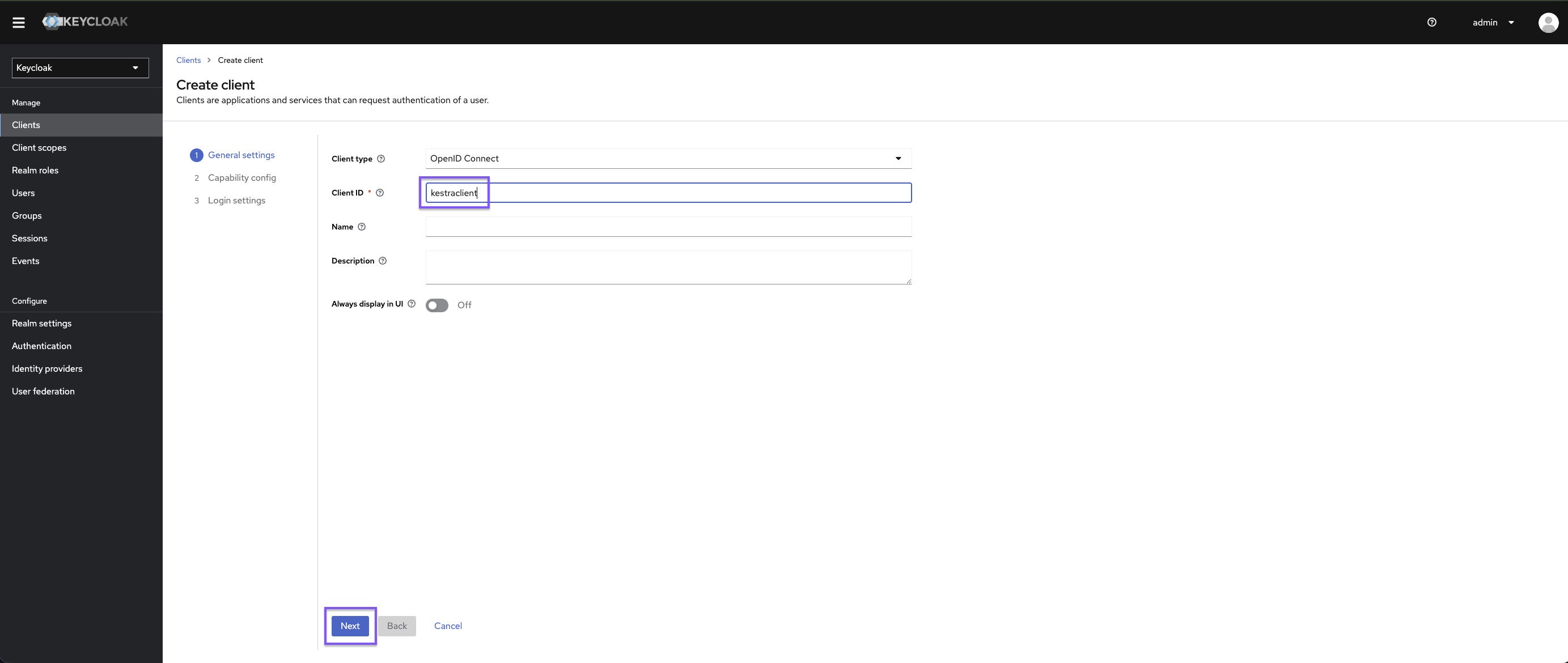

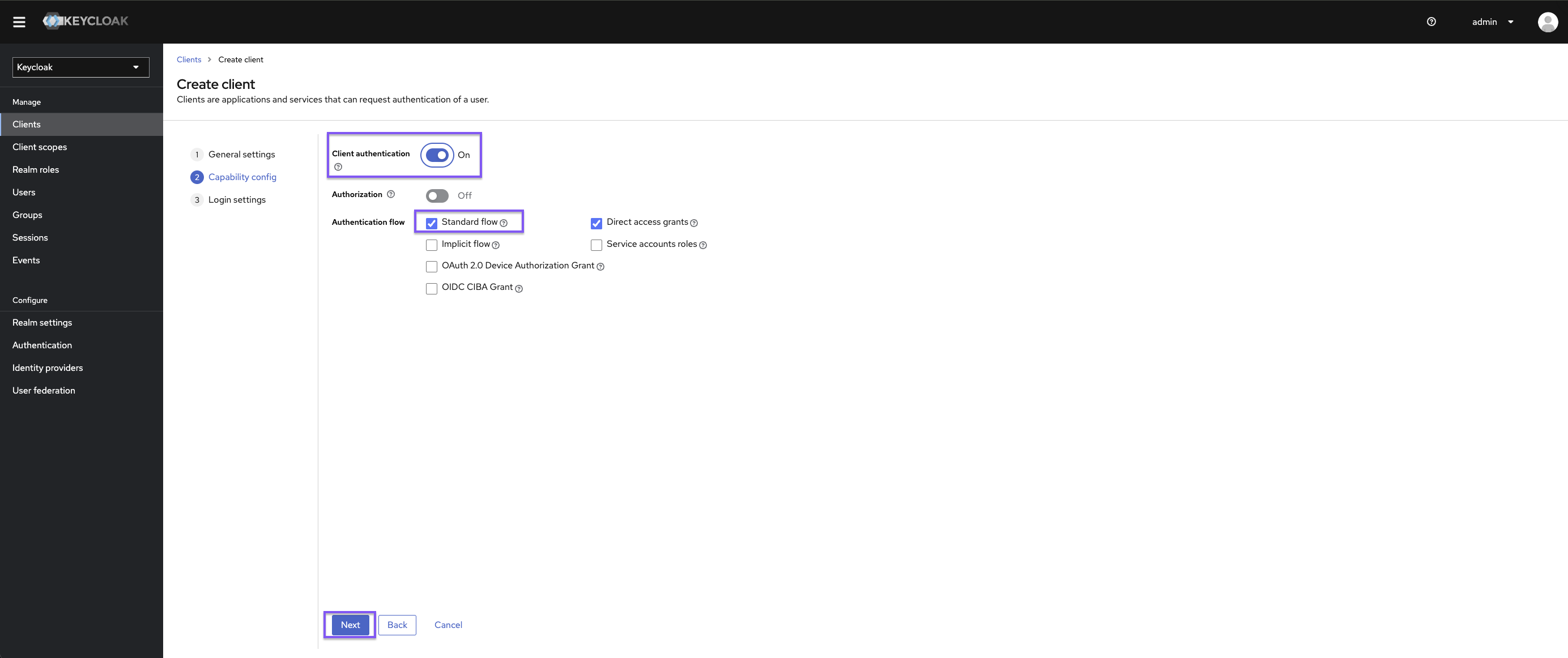

Once in Keycloak, create a new client:

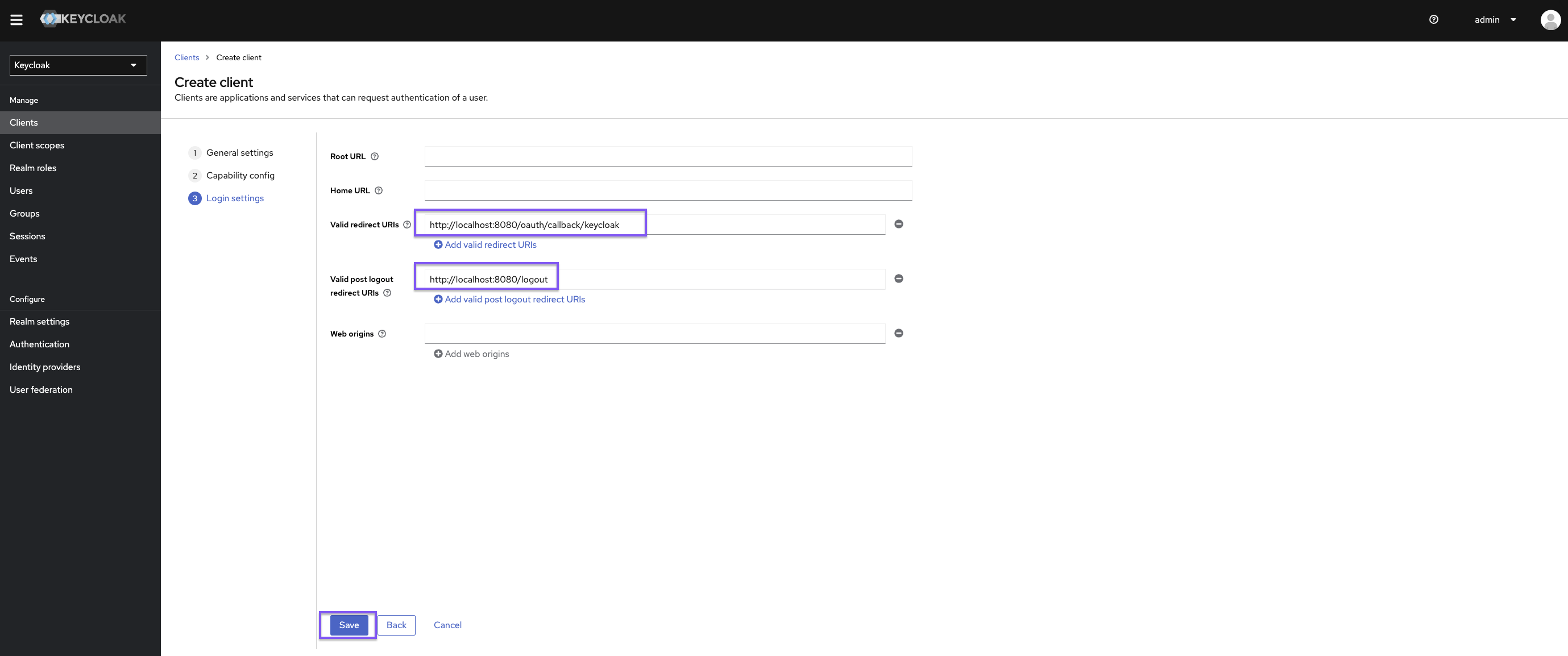

Set https://{{ yourKestraInstanceURL }}/oauth/callback/keycloak as the valid redirect URI and https://{{ yourKestraInstanceURL }}/logout as the valid post-logout redirect URI.

Kestra Configuration

micronaut:
  security:
    oauth2:
      enabled: true
      clients:
        keycloak:
          client-id: "{{clientId}}"
          client-secret: "{{clientSecret}}"
          openid:
            issuer: "https://{{keyCloakServer}}/realms/{{yourRealm}}"
    endpoints:
      logout:
        get-allowed: true

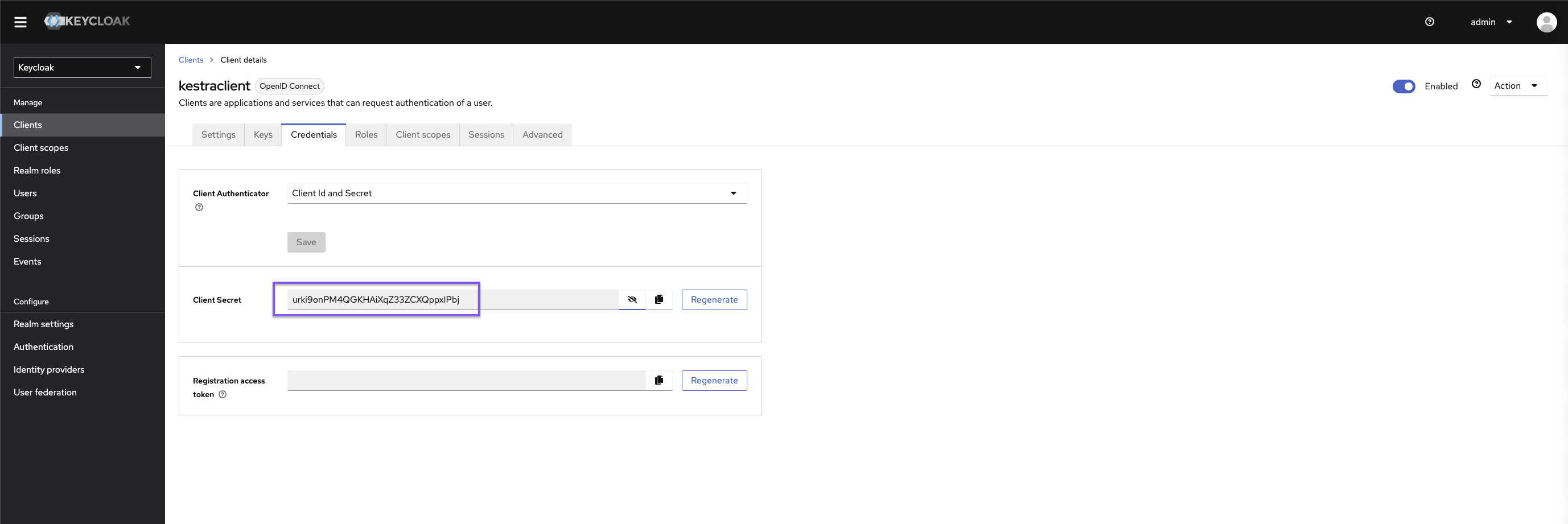

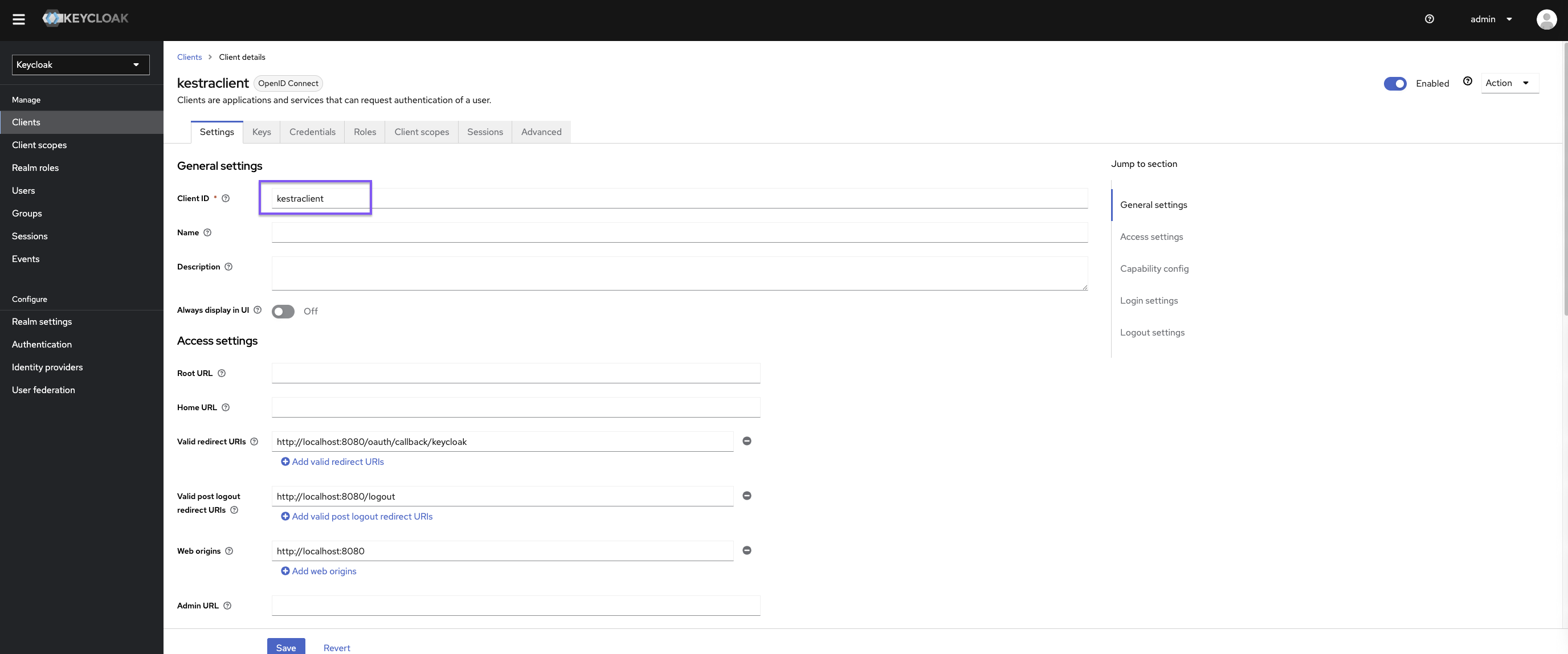

You can retrieve the clientId and clientSecret via the Keycloak user interface.

Set a default role in your Kestra Security and Secrets configuration to assign initial permissions to new SSO users.

kestra:
  security:
    defaultRole:
      name: Editor
      description: Default Editor role
      permissions:
        FLOW:
          - VIEW
          - LIST
          - CREATE
          - UPDATE
          - DELETE
          - EXECUTE
          - DISABLE
          - ENABLE
          - VALIDATE
          - EXPORT
          - IMPORT
        EXECUTION:
          - VIEW
          - LIST
          - UPDATE
          - DELETE
          - RESTART
          - KILL
          - REPLAY
          - PAUSE
          - RESUME
          - CHANGE_LABELS
          - ACCESS_LOGS
          - ACCESS_OUTPUTS
          - ACCESS_FILES
          - EXPORT
          - UNQUEUE
          - FORCE_RUN
          - FOLLOW

For more configuration details, refer to the Keycloak OIDC configuration guide.

Logout and session termination

By default, clicking logout in Kestra clears the Kestra session but does not terminate the underlying Keycloak SSO session. The next login will skip the username and password prompt and automatically re-authenticate the user via the still-active Keycloak session.

To fully terminate the Keycloak session on logout, add end-session to your configuration:

micronaut:
  security:
    oauth2:
      enabled: true
      clients:
        keycloak:
          client-id: "{{clientId}}"
          client-secret: "{{clientSecret}}"
          openid:
            issuer: "https://{{keyCloakServer}}/realms/{{yourRealm}}"
            end-session:
              enabled: true
              url: "https://{{keyCloakServer}}/realms/{{yourRealm}}/protocol/openid-connect/logout"
      endpoints:
        logout:
          get-allowed: true

If you also want to force users to re-enter their credentials on every Kestra login — even when an active Keycloak SSO session exists — add ?prompt=login to the authorization URL:

micronaut:
  security:
    oauth2:
      clients:
        keycloak:
          openid:
            authorization:
              url: "https://{{keyCloakServer}}/realms/{{yourRealm}}/protocol/openid-connect/auth?prompt=login"

These two settings are independent: end-session controls what happens on logout, while prompt=login controls what happens on the next login attempt.

Manage groups via OIDC claims

If you are unable to use SCIM with Keycloak, you can configure Kestra to source user groups from OIDC claims. In this setup, Keycloak acts as the single source of truth for user group membership. This method requires creating a groups client scope that exposes group membership via a claim in the ID Token.

Create a groups client scope

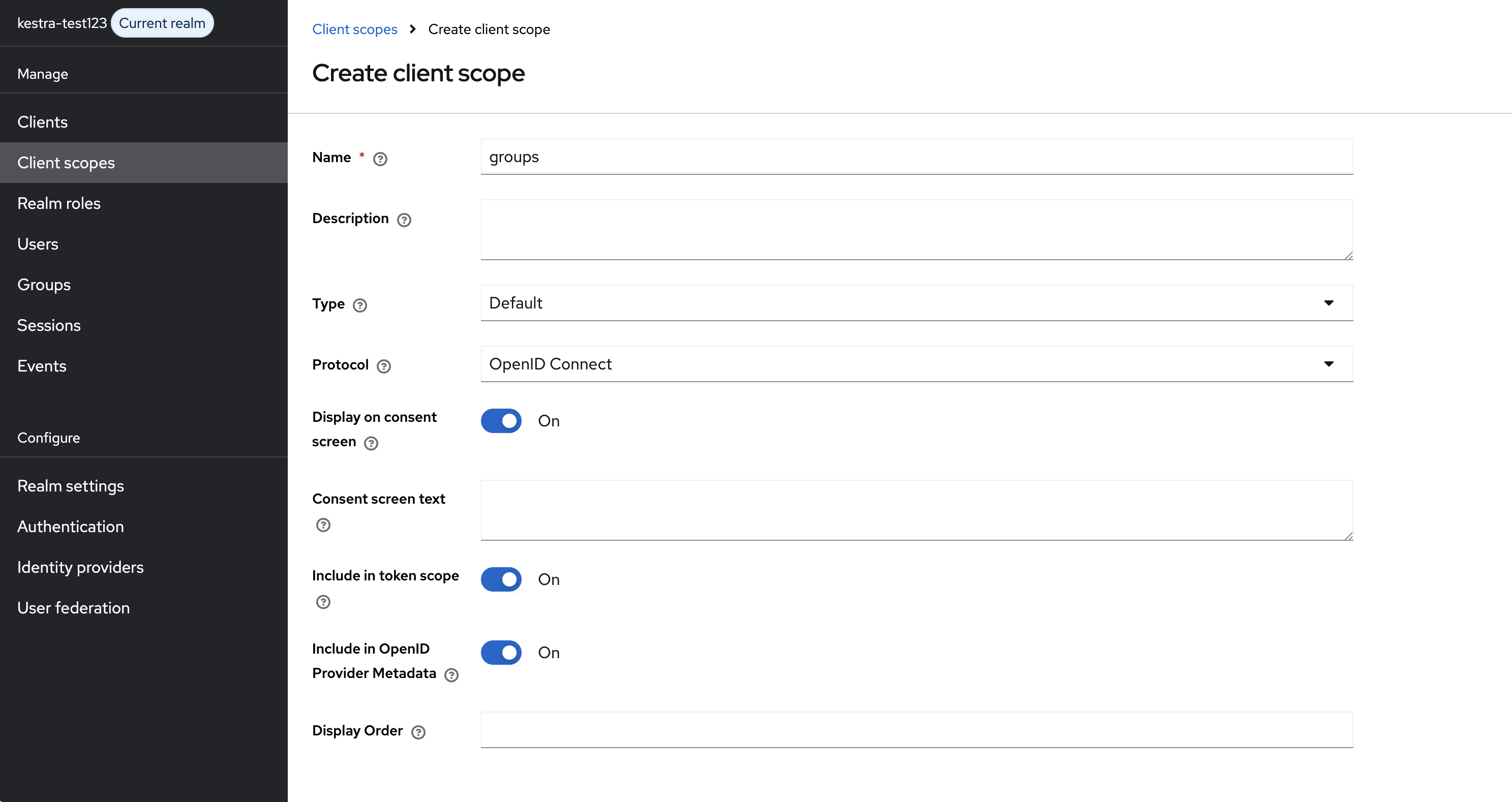

In Keycloak, go to Client Scopes and click Create Client Scope. Name it groups, set Type to Default, and keep Protocol as OpenID Connect.

Add a group membership mapper

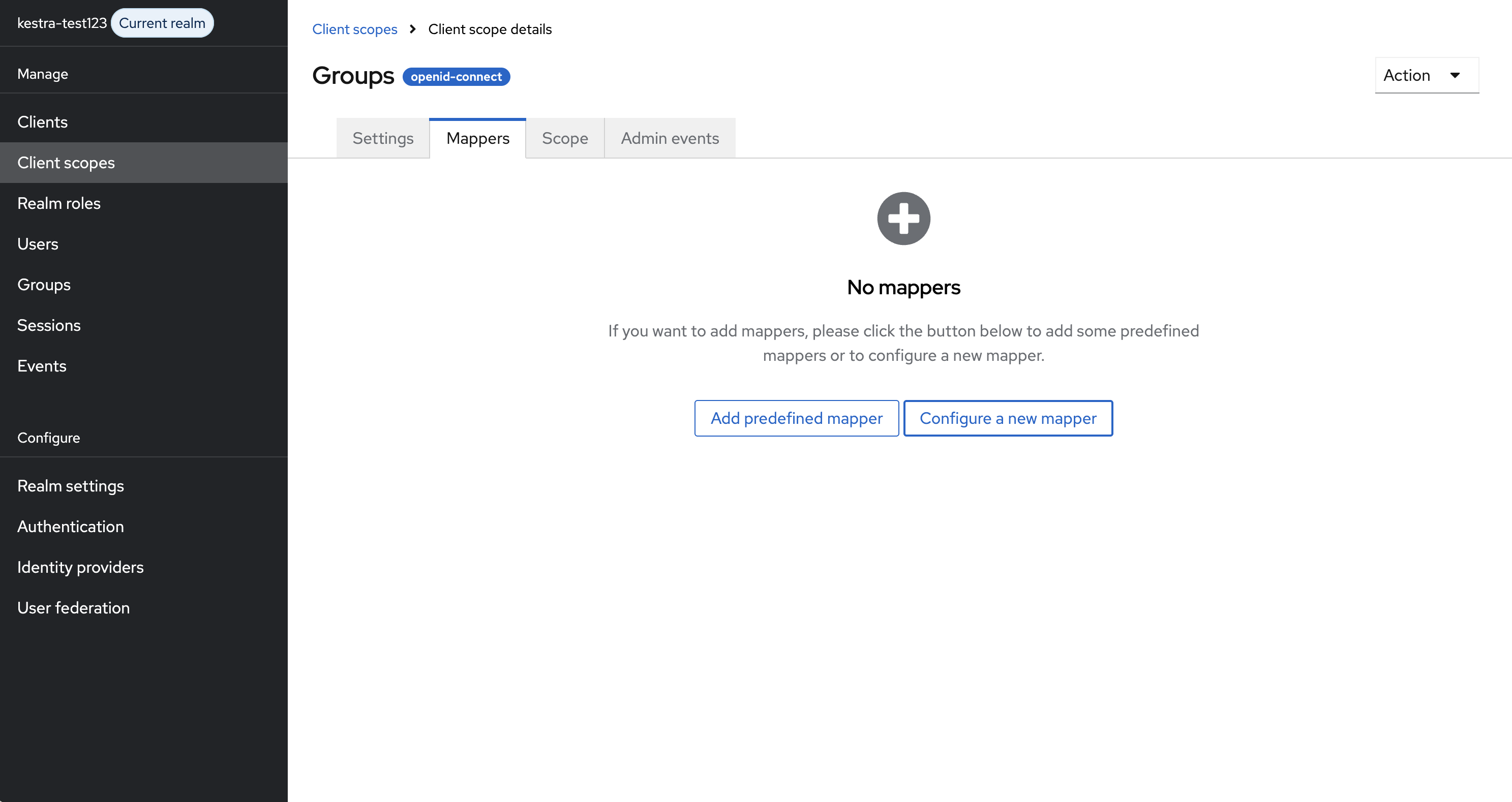

In the newly created groups scope, go to the Mappers tab and click Configure a new mapper.

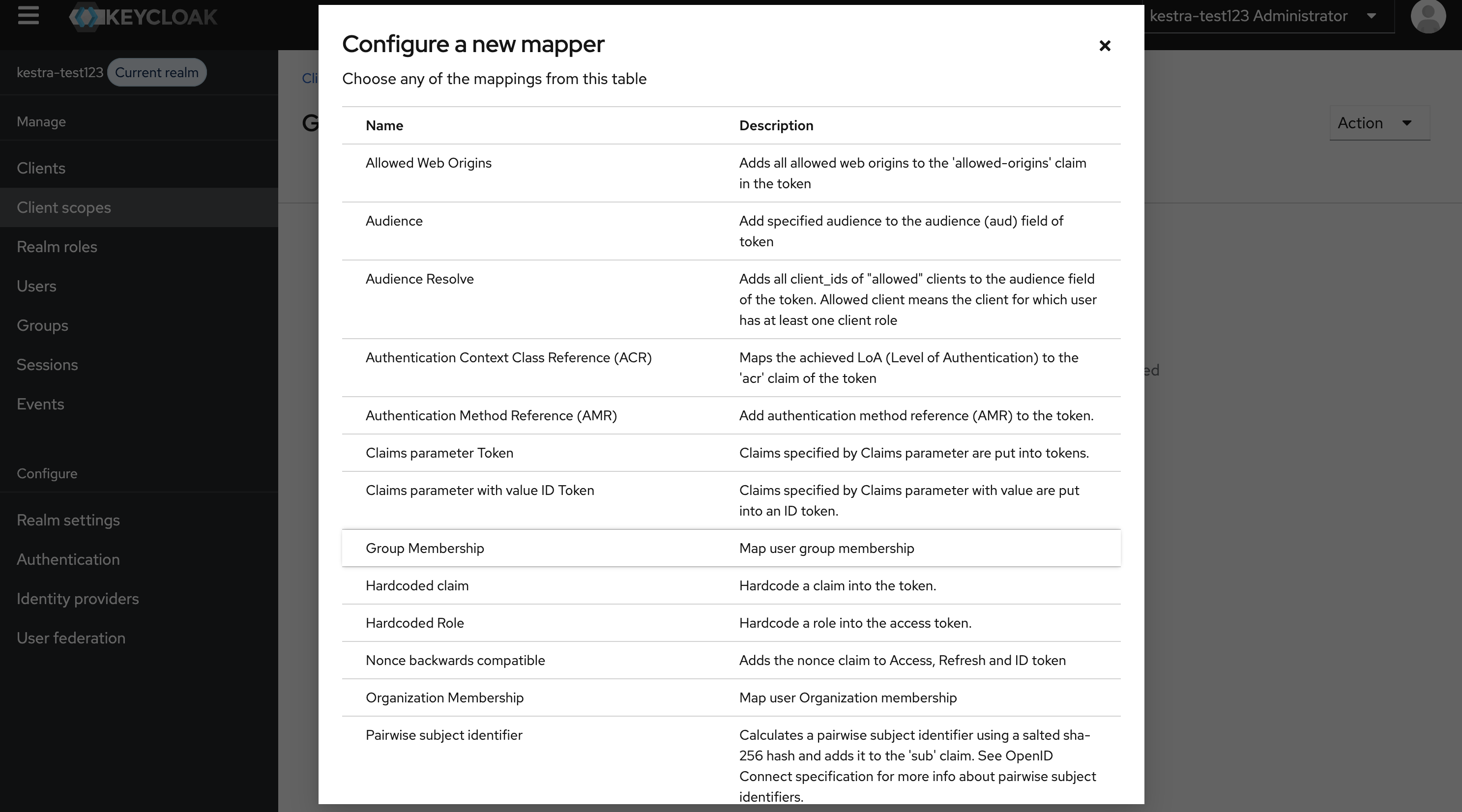

Select Group Membership from the list of available mapper types.

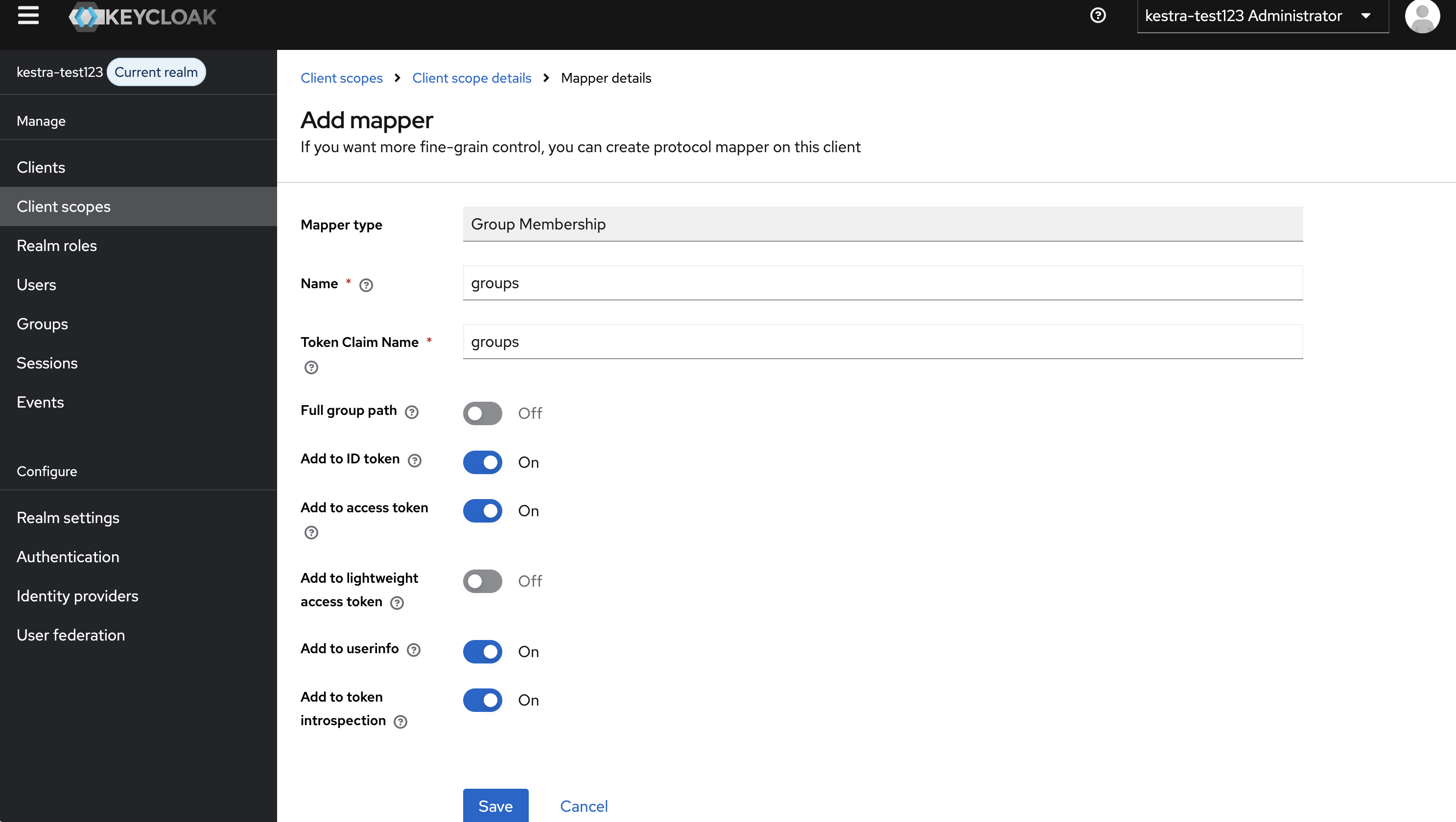

Configure the mapper with the following settings:

• Name: groups
• Token Claim Name: groups
• Full group path: Off
• Add to ID token: On

Add the client scope to your client

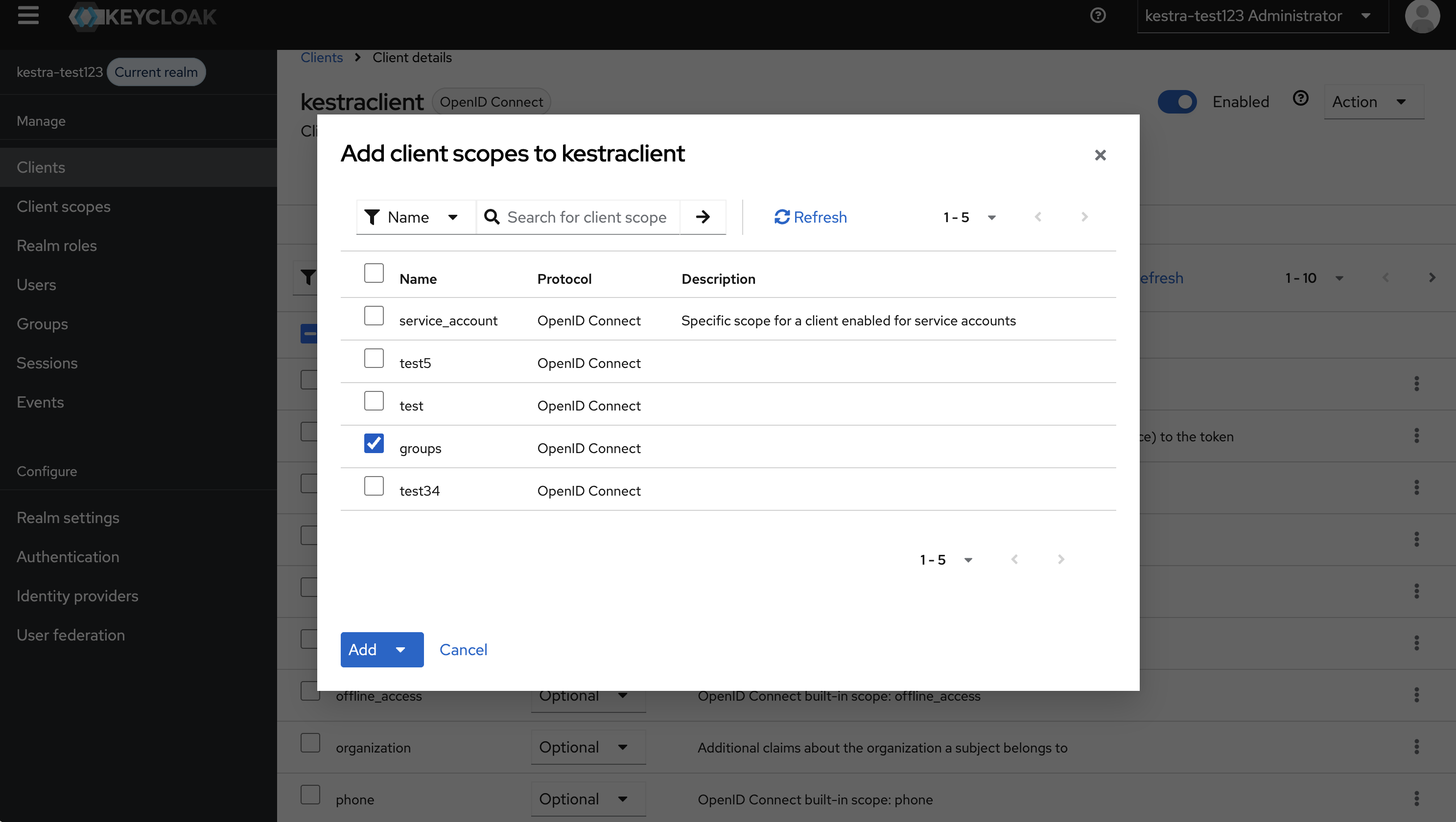

Go to Clients, select your Kestra client, and add the groups client scope.

Configure Kestra

Update your Micronaut configuration to include groups in the scopes:

micronaut:
  security:
    oauth2:
      enabled: true
      clients:
        keycloak:
          client-id: "{{clientId}}"
          client-secret: "{{clientSecret}}"
          openid:
            issuer: "https://{{keyCloakServer}}/realms/{{yourRealm}}"
          scopes: ["openid", "profile", "email", "groups"]
    endpoints:
      logout:
        get-allowed: true

Then configure Kestra to synchronize groups from the groups claim:

kestra:
  security:
    oidc:
      groups-claim-path: "groups"

Once configured, Kestra will source user groups from the groups claim in the ID Token, with Keycloak as the single source of truth.
