Support dynamic dropdown for inputs based on data from external source.

In this guide, we show how you can create a dynamic dropdown list for inputs. The dropdown retrieves the values from an external source. It is possible to do so by storing the values in the KV store, and also to directly integrate the external source with the HTTP Pebble function, http().

Update KV store on schedule

To get started, we create a flow that fetches the data from the external source and set the value in the KV store. The value will be in the form of a list of strings.

In this example, the flow fetches data from a PostgreSQL table on an hourly schedule. You can change the cron property to run at a different frequency depending on how frequently you expect the data at the source to change. If the external source is in a database that supports change data capture, as in this case where we use PostgreSQL table, you can also use the debezium trigger and immediately update the KV store.

id: update_kv_store
namespace: company.team

tasks:
  - id: fetch_departments
    type: io.kestra.plugin.jdbc.postgresql.Query
    url: "jdbc:postgresql://{{ secret('POSTGRES_HOST') }}:5432/postgres"
    username: "{{ secret('POSTGRES_USERNAME') }}"
    password: "{{ secret('POSTGRES_PASSWORD') }}"
    sql: select department_name from departments
    fetchType: FETCH

  - id: department_key
    type: io.kestra.plugin.core.kv.Set
    key: "{{ task.id }}"
    kvType: JSON
    value: "{{ outputs.fetch_departments.rows | jq('.[].department_name') }}"

triggers:
  - id: schedule
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "0 */1 * * *"

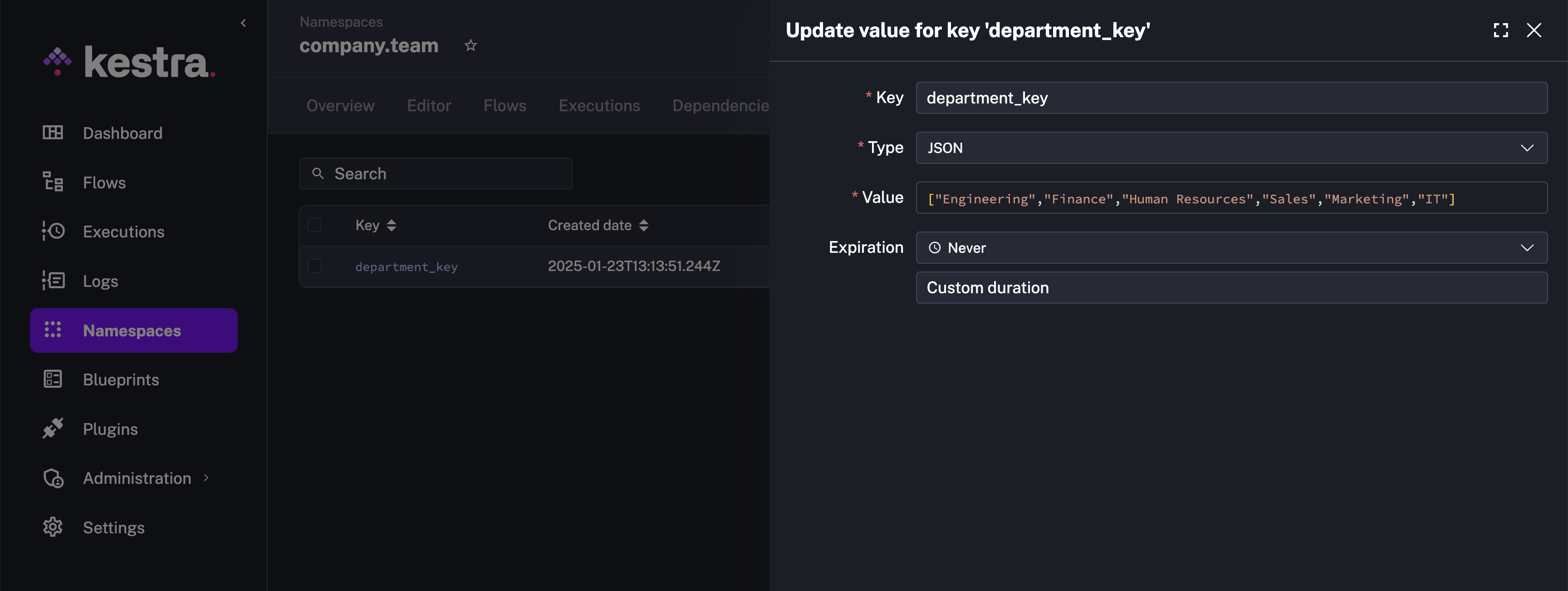

This is how the KV store will look post execution of the above flow.

kv_store_content

Flow supporting Dynamic Inputs

Let us now create the flow that supports dynamic dropdown for inputs powered by the KV store key.

id: dynamic_input_flow
namespace: company.team

inputs:
  - id: department
    displayName: Department Name
    type: SELECT
    expression: "{{ kv('department_key') }}"

tasks:
  - id: hello
    type: io.kestra.plugin.core.log.Log
    message: "The selected department is {{ inputs.department }}"

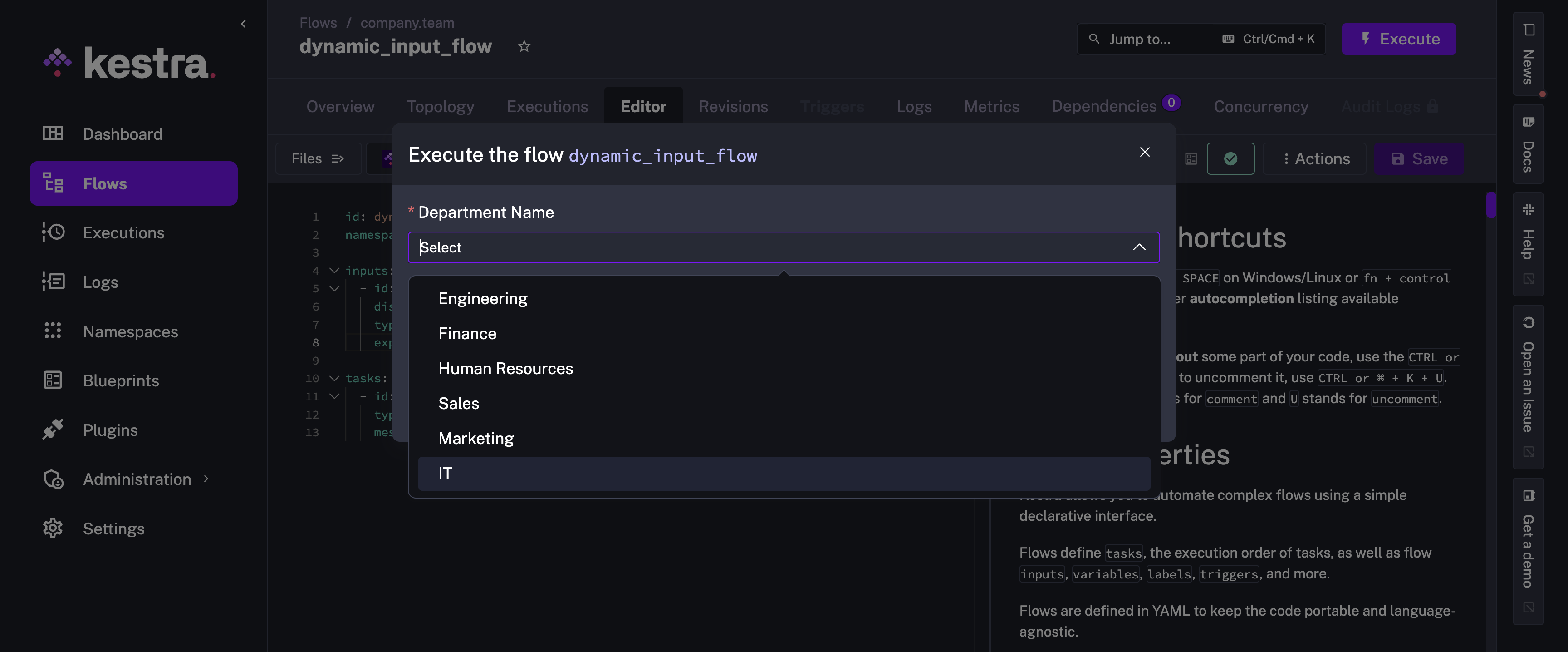

When you execute this flow, the department input will have a dropdown that contains the values fetched from the department_key key in the KV store.

dynamic_dropdown

Dynamic Inputs with HTTP function

With the http() function, you can make SELECT and MULTISELECT inputs dynamic by fetching options from an external API. This proves valuable when your data used in dropdowns changes frequently or when you already have an API serving that data for existing applications.

The example below demonstrates how to create a flow with two dynamic dropdowns: one for selecting a product category and another for selecting a product from that category. The first dropdown fetches the product categories from an external HTTP API. The second dropdown makes another HTTP call to dynamically retrieve products matching the selected category.

id: dynamic_dropdowns
namespace: company.team
inputs:
  - id: category
    type: SELECT
    expression: "{{ http(uri = 'https://dummyjson.com/products/categories') | jq('.[].slug') }}"
  - id: product
    type: SELECT
    dependsOn:
      inputs:
        - category
    expression: "{{ http(uri = 'https://dummyjson.com/products/category/' + inputs.category) | jq('.products[].title') }}"
tasks:
  - id: display_selection
    type: io.kestra.plugin.core.log.Log
    message: |
      You selected Category: {{ inputs.category }}
      And Product: {{ inputs.product }}

Dynamic inputs are useful for flows using authenticated API requests like the following:

id: approversFlow
namespace: company.team

inputs:
  - id: executionIdsToBeApproved
    type: MULTISELECT
    expression: >-
      {{
      http(
        uri = 'http://localhost:8080/api/v1/internal/executions/search?state=PAUSED',
        method = 'GET',
        contentType = 'application/json',
        headers={
          'User-Agent': 'kestra',
          'Connection': 'keep-alive',
          'Authorization': 'Bearer ' ~ secret("bearerToken")
        }
      ) | jq('.results[] | "ExecutionId: \(.id), FlowId: \(.flowId), RequestedBy: \(.labels[] | select(.key == "system.username").value) InputParams: \( .inputs | to_entries | map("\(.key):\(.value)") | join(" ") )"')  }}

tasks:
  - id: hello
    type: io.kestra.plugin.core.log.Log
    message: Hello World! 🚀

When using http() inside an expression with secrets in headers (e.g., an authenticated API request), use named arguments and string concatenation (Pebble Literals). The key to the syntax is to use string interpolation with ~.

When kv() and http() are not enough — for example, when you need to run a script task, call a CLI command (aws ec2 describe-instances, gcloud projects list), or execute complex multi-step logic — use the subflow() Pebble function.

subflow() runs a subflow synchronously at form render time and exposes its flow-level outputs as the dropdown values. The main flow does not start until the subflow finishes and the form is submitted.

Step 1 — Create the data-fetching subflow. This flow queries your infrastructure and returns a list as a flow-level output:

id: fetch_aws_regions
namespace: company.ops

tasks:
  - id: get_regions
    type: io.kestra.plugin.scripts.shell.Commands
    taskRunner:
      type: io.kestra.plugin.core.runner.Process
    commands:
      - |
        regions=$(aws ec2 describe-regions --query 'Regions[].RegionName' --output json)
        echo "::$(printf '{"outputs":{"regions":%s}}' "$regions")::"

outputs:
  - id: regions
    type: JSON
    value: "{{ outputs.get_regions.vars.regions }}"

The ::{"outputs":{"key":"value"}}:: line is Kestra’s script output format — it’s how shell.Commands tasks publish named values that downstream expressions can reference via outputs.<task_id>.vars.<key>.

Step 2 — Reference it from a SELECT input in your main flow:

id: deploy_to_region
namespace: company.ops

inputs:
  - id: region
    type: SELECT
    displayName: AWS Region
    expression: "{{ subflow(namespace='company.ops', id='fetch_aws_regions').outputs.regions }}"

tasks:
  - id: deploy
    type: io.kestra.plugin.core.log.Log
    message: "Deploying to {{ inputs.region }}"

When a user opens the Execute form, Kestra runs fetch_aws_regions synchronously and populates the dropdown from its output.

Chaining dropdowns with `dependsOn`

You can chain dropdowns so the second list depends on the first selection:

inputs:
  - id: environment
    type: SELECT
    expression: "{{ subflow(namespace='company.ops', id='fetch_environments').outputs.envs }}"

  - id: cluster
    type: SELECT
    dependsOn:
      inputs:
        - environment
    expression: "{{ subflow(namespace='company.ops', id='fetch_clusters', inputs={'env': inputs.environment}).outputs.clusters }}"

Constraints to be aware of:

subflow() is only valid in the expression: property of a SELECT or MULTISELECT input. It throws if used in a task or trigger property.
The subflow must complete within the timeout (default PT1M, max PT5M). Keep data-fetching subflows fast.
Recursion is capped at depth 3.
Each subflow referenced in a SELECT or MULTISELECT expression appears in the parent flow’s Dependencies graph automatically.

Conditional inputs

Use dependsOn and condition to show an input only when a previous input matches a value. The following flow shows different inputs depending on which resource type the user selects:

id: request_resources
namespace: company.team

inputs:
  - id: resource_type
    displayName: Resource type
    type: SELECT
    values:
      - Access permissions
      - SaaS application
      - Cloud VM

  - id: access_permissions
    displayName: Access permissions
    type: SELECT
    expression: "{{ kv('access_permissions') }}"
    dependsOn:
      inputs:
        - resource_type
      condition: "{{ inputs.resource_type == 'Access permissions' }}"

  - id: saas_applications
    displayName: SaaS application
    type: MULTISELECT
    expression: "{{ kv('saas_applications') }}"
    dependsOn:
      inputs:
        - resource_type
      condition: "{{ inputs.resource_type == 'SaaS application' }}"

  - id: cloud_provider
    displayName: Cloud provider
    type: SELECT
    values:
      - AWS
      - GCP
      - Azure
    dependsOn:
      inputs:
        - resource_type
      condition: "{{ inputs.resource_type == 'Cloud VM' }}"

  - id: cloud_vm
    displayName: Cloud VM
    type: SELECT
    expression: "{{ kv('cloud_vms')[inputs.cloud_provider] }}"
    dependsOn:
      inputs:
        - resource_type
        - cloud_provider
      condition: "{{ inputs.resource_type == 'Cloud VM' }}"

tasks:
  - id: log
    type: io.kestra.plugin.core.log.Log
    message: "Resource type: {{ inputs.resource_type }}"

dependsOn.inputs lists the inputs that must be provided first. dependsOn.condition is a Pebble expression that controls visibility — the dependent input only appears in the Execute modal when the condition is true. An input can depend on multiple parents; all listed inputs must be provided before the condition is evaluated.

Populate the KV store keys before running the flow:

Flow to add key-value pairs

id: add_kv_pairs
namespace: company.team

tasks:
  - id: access_permissions
    type: io.kestra.plugin.core.kv.Set
    key: "{{ task.id }}"
    kvType: JSON
    value: |
      ["Admin", "Developer", "Editor", "Launcher", "Viewer"]

  - id: saas_applications
    type: io.kestra.plugin.core.kv.Set
    key: "{{ task.id }}"
    kvType: JSON
    value: |
      ["Slack", "Notion", "HubSpot", "GitHub", "Jira"]

  - id: cloud_vms
    type: io.kestra.plugin.core.kv.Set
    key: "{{ task.id }}"
    kvType: JSON
    value: |
      {
        "AWS": ["t2.micro", "t2.small", "t2.medium", "t2.large"],
        "GCP": ["f1-micro", "g1-small", "n1-standard-1", "n1-standard-2"],
        "Azure": ["Standard_B1s", "Standard_B1ms", "Standard_B2s", "Standard_B2ms"]
      }

dependsOn inside FORM inputs

To make one child input inside a FORM depend on another, use the full dotted path in dependsOn.inputs:

inputs:
  - id: cloud
    type: FORM
    displayName: Cloud configuration
    inputs:
      - id: provider
        type: SELECT
        values: [AWS, GCP, Azure]

      - id: region
        type: SELECT
        dependsOn:
          inputs:
            - cloud.provider
          condition: "{{ inputs.cloud.provider == 'AWS' }}"
        values:
          - us-east-1
          - eu-west-1

Label/value pairs for decoupled dropdowns

When your API returns structured data, use a {label, value} jq projection so the dropdown shows a human-readable label while {{ inputs.x }} resolves to the underlying technical identifier:

id: dynamic_account_selector
namespace: company.team

inputs:
  - id: aws_account
    type: SELECT
    displayName: AWS Account
    expression: "{{ http(uri = 'https://api.example.com/accounts') | jq('.accounts[] | {label: .name, value: .id}') }}"

tasks:
  - id: log_account
    type: io.kestra.plugin.core.log.Log
    message: "Selected account ID: {{ inputs.aws_account }}"

The dropdown displays account names; {{ inputs.aws_account }} resolves to the account ID. The same pattern works with static values lists — see Label/value pairs in SELECT and MULTISELECT inputs.
